Hyundai Venue: Indicators And Gauges / Schematic diagrams

Hyundai Venue (QX) (2020-2024) Service Manual / Body Electrical System / Indicators And Gauges / Schematic diagrams

Circuit Diagram

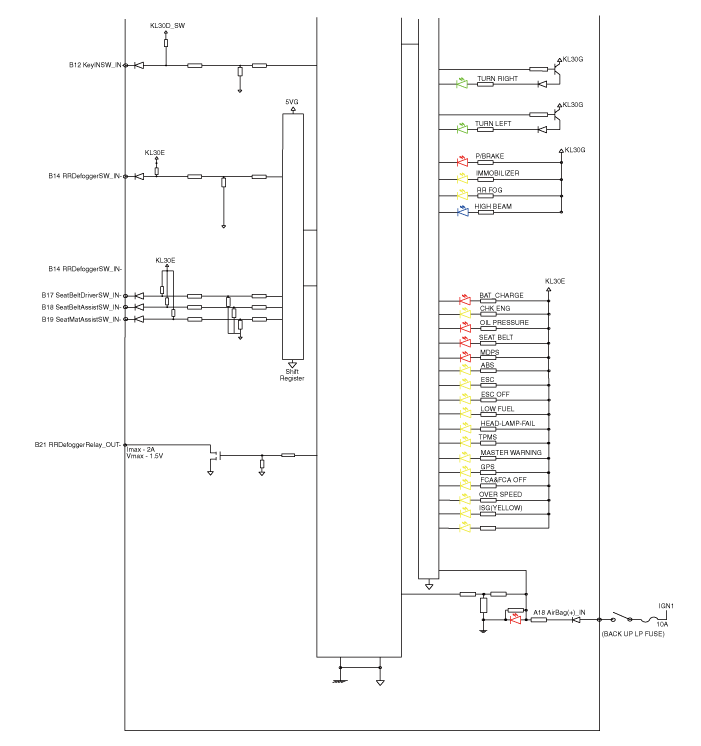

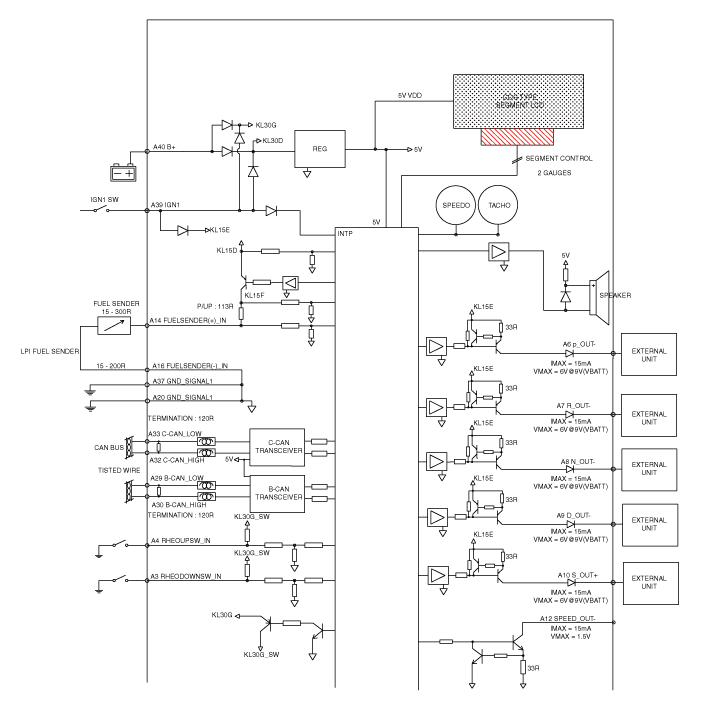

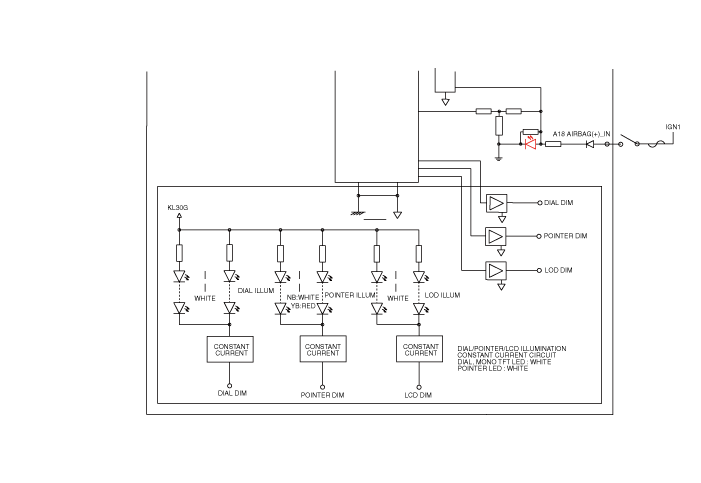

16 Gray MONO TFT

Hyundai Venue. Schematic diagrams

Hyundai Venue. Schematic diagrams

Hyundai Venue. Schematic diagrams

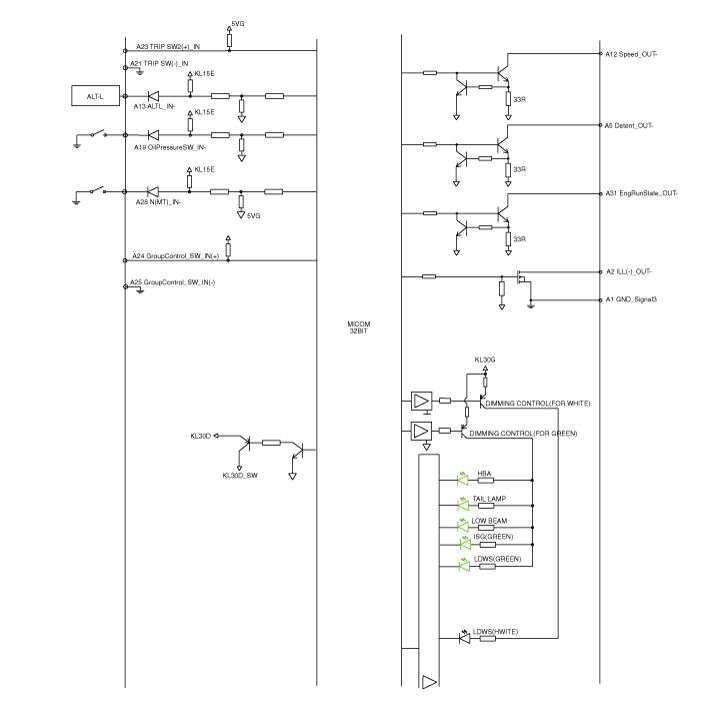

COG Type Segment LCD

Hyundai Venue. Schematic diagrams

Hyundai Venue. Schematic diagrams

Hyundai Venue. Schematic diagrams

Hyundai Venue. Schematic diagrams
