Hyundai Venue (QX) (2020-2023) Service Manual / Engine Electrical System / Ignition System / Ignition Coil / Schematic diagrams

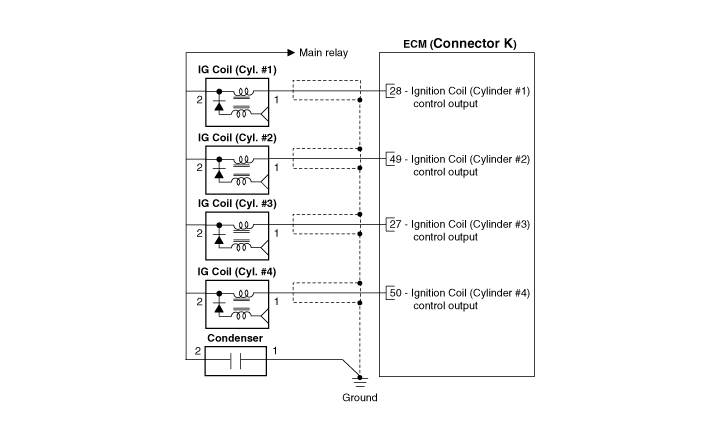

Circuit Diagram
[M/T]

Hyundai Venue. Schematic diagrams

[A/T]

Hyundai Venue. Schematic diagrams

[Harness Connector]

Hyundai Venue. Schematic diagrams

    Troubleshooting

    ..

    Repair procedures

    Removal 1. Disconnect the battery nagative terminal. 2. Remove the engine cover. 3...
