Hyundai Venue: Smart Key System / Smart Key Unit. Components and components location

Hyundai Venue (QX) (2020-2022) Service Manual / Body Electrical System / Smart Key System / Smart Key Unit. Components and components location

Components

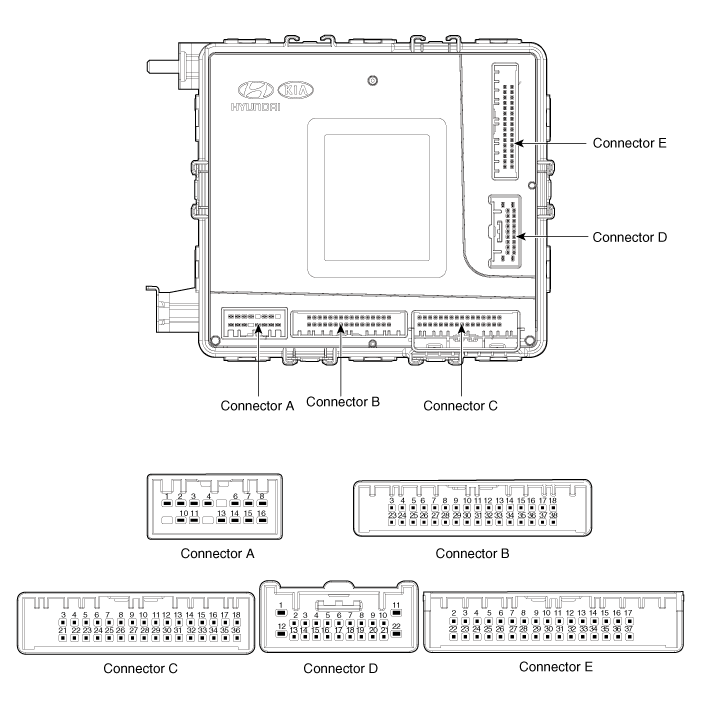

Integrated Body Control Unit (IBU)

Hyundai Venue. Smart Key Unit. Components and components location

Connector Pin Information
No
Connector A
Connector B
Connector C
Connector D
Connector E
1
-
-
-
-
-
2
Rear washer Switch_Input
-
-
Heated handle indicator_output
ACC Relay_output
3
Front washer Switch_Input
PDW-R power_output
ATM solenoid_output
-
Starter Relay_output
4
Battery (+) Power
Hazard Switch_input
RH Turn signal lamp actuator_output
NTC sensor_input
IGN1 Relay_output
5
-
Sunroof Status_input
-
Rear left seat belt indicator_output
ESCL (-)_output
6
GND Power
Autolight Switch_input
Serial communication (K-Line) with EMS
-
SSB Switch2_input
7
SBL LH_output
Rear wiper Switch_input
ESCL Unlock Switch_input
GND (NTC)
SSB Switch1_input
8
SBL Power_input
Front wiper volume Switch_input
Front wiper low backup switch_input
-
Outside Hnadle Antenna Passenger (+)_output
9
-
Turn Signal Switch_input
P position_input (AT)
-
Interior Antenna1 Power_output
Clutch IGN Lock_input (MT)
10
Turn Signal Power_input
Fog Switch FR_input
Wiper parking switch_input
-
Interior Antenna2 Power_output
11
Battery (+) ECU
Front wiper switch_input
Brake Switch_input
-
Outside Hnadle Antenna Driver (+)_output
12
-
Headlamp High Switch_input
-
-
Bumper Antenna Power_output
13
Static Bending RH_output
ACC_input
-
Heated handle switch_input
-
14
GND ECU
IGN2_input
Safety Power Window Enable_output
Rear left seat belt switch_output
-
15
Heated handle power_output
-
-
Rear right seat belt indicator_output
-
16
IGN2_Heated handle power
PDW Power_input
Front wiper low relay_output
Rear center seat belt switch_output
-
17

Turn Signal FR LH_output
Front wiper high relay_output

Wheel Speed Sensor_input
18
Turn Signal RR LH_output
-
-
-
19
-
-
Rear center seat belt indicator_output
-
20
-
-
-
-
21
-
-
-
-
22
-
External Buzzer_output
-
IGN2 Relay_output
23
-
-

ESCL (+)_output
24
IGN 1_input
Multi function switch GND_input
ESCL enable_output
25
Room lamp _output
Rear right seat belt switch_input
Starter feedback_input
26
-
Immobilizer Power_output
Driver Outside handle_output
27
PDW-R switch_input
Immobilizer GND_output
Passenger Outside handle_output
28
Turn signal actuator_output
AV Tail_output
Passenger Outside handle antenna (-)_output
29
-
-
Interior antenna 1 GND_output
30
PDW-R indicator_input
-
Interior antenna 2 GND_output
31
Autolight sensor GND_output
Alatm Horn Relay_output
Driver Outside handle antenna (-)_output
32
Autolight sensor signal_output
ESCL COM
Bumper antenna GND_output
33
Autolight sensor power_output
-
-
34
LIN
Rear wiper relay_output
-
35
B-CAN (Low)
C-CAN (High)
-
36
B-CAN (High)
C-CAN (Low)
-
37
Turn Signal RR RH_output

-
38
Turn Signal FR RH_output
