Hyundai Venue: Convenient Features / Sunroof

Hyundai Venue (QX) (2020-2022) Owners Manual / Convenient Features / Sunroof

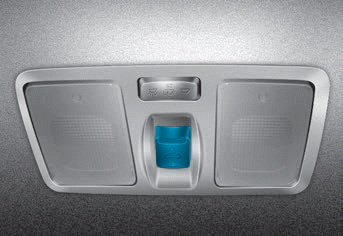

If your vehicle is equipped with a sunroof, you can slide or tilt your sunroof with the sunroof control switch located on the overhead console.

Hyundai Venue. Sunroof

Type A

Hyundai Venue. Sunroof

Type B

The sunroof can only be opened, closed, or tilted when the ignition switch is in the ON position.

The sunroof can be operated for approximately 10 minutes after the ignition key is removed or turned to the ACC or LOCK (or OFF) position.

However, if the front door is opened, the sunroof cannot be operated even within the 10 minutes period.

Information

  • In cold and wet climates, the sunroof may not work properly due to freezing conditions.
  • After the vehicle is washed or in a rainstorm, be sure to wipe off any water that is on the sunroof before operating it.

WARNING

  • Never adjust the sunroof or sunshade while driving. This could result in loss of control and an accident that may cause death, serious injury, or property damage.
  • Make sure heads, hands, arms or any other body parts or objects are out of the way before operating the sunroof.
  • Do not extend your head, arms or body outside the sunroof while driving, to avoid serious injury.
  • Do not leave the engine running and the key in your vehicle with unsupervised children. Unattended children could operate the sunroof, which could result in serious injury.
  • Do not sit on the top of the vehicle. It may cause injury or vehicle damage.

NOTICE

  • Do not continue to move the sunroof control lever after the sunroof is fully opened, closed, or tilted. Damage to the motor or system components could occur.
  • Make sure the sunroof is closed fully when leaving your vehicle. If the sunroof is left open, rain or snow may wet the interior of the vehicle. Also, leaving the sunroof open when the vehicle is unattended may invite theft.

Power Windows

The ignition switch must be in the ON position to be able to raise or lower the windows. Each door has a Power Window switch to control that door’s window...

Sunroof opening and closing

To open the sunroof: Press the sunroof control lever backward to the first detent position. Release the switch when you want the sunroof to stop. To close the sunroof: Press the sunroof control lever forward to the first detent position...
