Hyundai Venue: Sunroof / Sunshade

Hyundai Venue (QX) (2020-2023) Owners Manual / Convenient Features / Sunroof / Sunshade

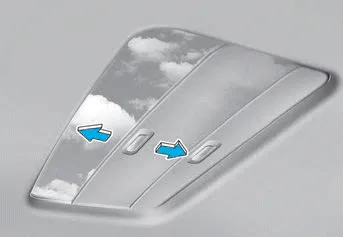

Hyundai Venue. Sunshade

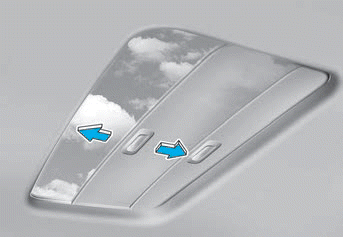

The sunshade can be opened and closed manually. However, the sunshade will open automatically with the sunroof when the glass panel moves. If you want it closed, move the sunshade manually.

NOTICE

Do not close the sunshade while the sunroof is open.

Automatic reversal

Hyundai Venue. Sunshade

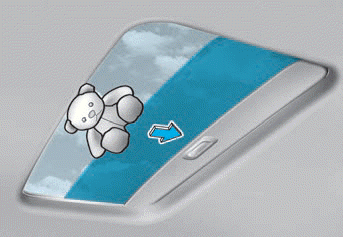

If an object or part of the body is detected while the sunroof glass is closing automatically, it will reverse the direction, and then stop.

The auto reverse function does not work if a tiny obstacle is between the sliding glass and the sunroof sash. You should always check that all passengers and objects are away from the sunroof before closing it.

    Tilting the sunroof

    Tilt the sunroof open: Push the sunroof control lever upward until the sunroof moves to the desired position. To close the sunroof: Push the sunroof control lever forward until the sunroof moves to the desired position...

    Resetting the sunroof

    The sunroof may need to be reset if the following conditions occur: -- The battery is discharged or disconnected or the sunroof fuse has been replaced or disconnected -- The sunroof control lever is not operating correctly To reset the sunroof, perform the following steps: 1...
