Hyundai Venue: ABS(Anti-Lock Brake System) / Troubleshooting

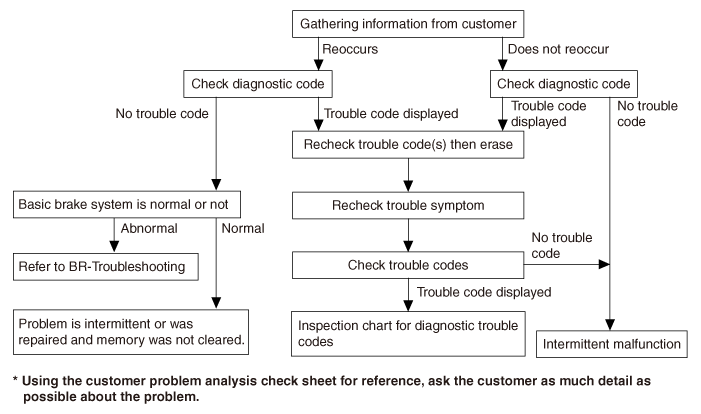

Standard Flow of Diagnostic Troubleshooting
Notes With Regard To Diagnosis
The phenomena listed in the following table are not abnormal.
Condition
|
Explanation
|
System check sound
|
When starting the engine, a thudding sound can sometimes be heard coming
from inside the engine compartment. This is because the system operation
check is being performed.
|
ABS Operation sound
|
| 1) |
Sound of the motor inside the ABS hydraulic unit operation (whine).
|
| 2) |
Sound is generated along with vibration of the brake pedal (scraping).
|
| 3) |
When ABS operates, sound is generated from the vehicle chassis
due to repeated brake application and release (Thump : suspension;
squeak: tires)
|
|
ABS Operation (Long braking distance)
|
For road surfaces such as snow-covered and gravel roads, the braking distance
for vehicles with ABS can sometimes be longer than that for other vehicles.
Accordingly, advise the customer to drive safely on such roads by lowering
the vehicle speed.
|
Diagnosis detection conditions can vary depending on the diagnosis code.
When checking the trouble symptom after the diagnosis code has been erased,
ensure that the requirements listed in "Comment" are met.
|

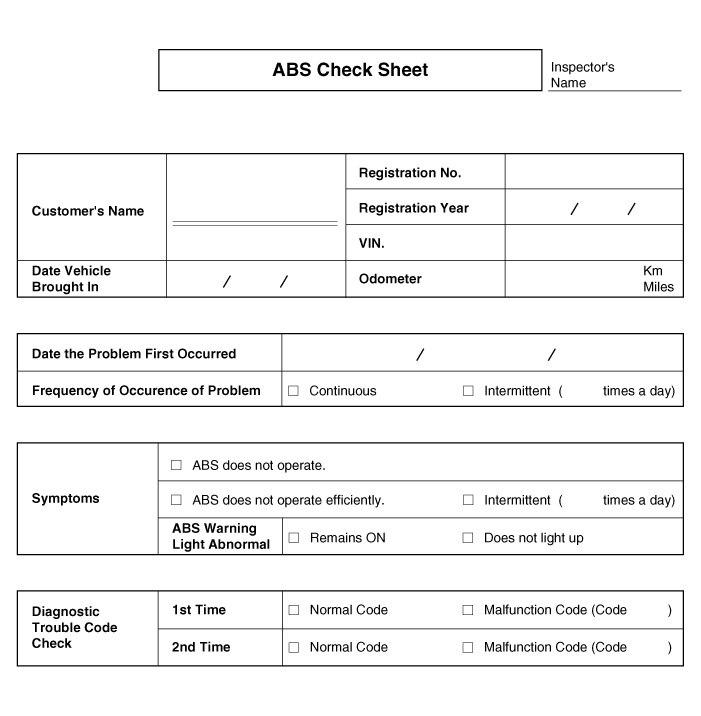

ABS Check Sheet
Problem Symptoms Table
Symptom
|
Suspect Area
|
ABS does not operate.
|
Only when 1-4 are all normal and the problem is still occurring, replace
the HECU.
| 1) |
Check the DTC reconfirming that the normal code is output.
|
| 4) |
Check the hydraulic circuit for leakage.
|
|
ABS does not operate intermittently.
|
Only when 1-4 are all normal and the problem is still occurring, replace
the ABS actuator assembly.
| 1) |
Check the DTC reconfirming that the normal code is output.
|
| 2) |
Wheel speed sensor circuit.
|
| 3) |
Stop lamp switch circuit.
|
| 4) |
Check the hydraulic circuit for leakage.
|
|
Communication with GDS is not possible. (Communication with any system is
not possible)
|
|
Communication with GDS is not possible. (Communication with ABS only is
not possible)
|
|
When ignition key is turned ON (engine OFF), the ABS warning lamp does not
light up.
|
| 1) |
ABS warning lamp circuit
|
|
Even after the engine is started, the ABS warning lamp remains ON.
|
| 1) |
ABS warning lamp circuit
|
|
| • |
During ABS operation, the brake pedal may vibrate or may not
be able to be depressed. Such phenomena are due to intermittent
changes in hydraulic pressure inside the brake line to prevent
the wheels from locking and is not an abnormality.
|
|
Detecting condition
Trouble Symptoms
|
Possible Cause
|
Brake operation varies depending on driving conditions and road surface
conditions, so diagnosis can be difficult. However if a normal DTC is displayed,
check the following probable cause. When the problem is still occurring,
replace the ABS control module.
|
| – |
Faulty power source circuit
|
| – |
Faulty wheel speed sensor circuit
|
| – |
Faulty hydraulic circuit for leakage
|
|
Inspection procedures
DTC Inspection
| 1. |
Connect the GDS with the data link connector and turn the ignition switch
ON.
|
| 2. |
Verify that the DTC code is output.
|
| 3. |
Is the DTC code output?
|
|
▶ Check the power source
circuit.
|
|
|
▶ Erase the DTC and recheck
using GDS.
|
|
Check the power source circuit
| 1. |
Disconnect the connector from the ABS control module.
|
| 2. |

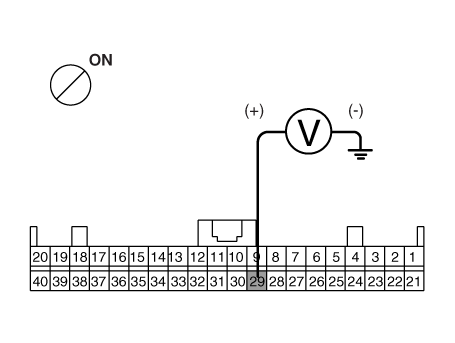

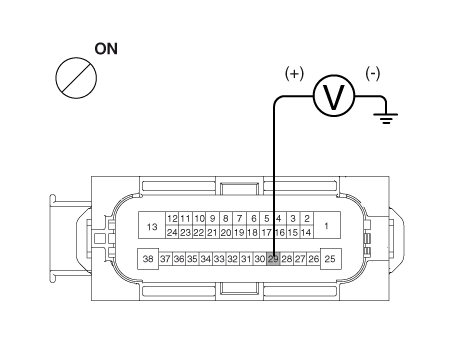

Turn the ignition switch ON, measure the voltage between terminal 29
of the ABS control module harness side connector and body ground.
|
Specification : approximately B+
|
|
| 3. |
Is the voltage within specification?
|
|
▶ Check the ground circuit.
|
|
|
▶ Check the harness or
connector between the fuse (10A) in the engine compartment junction
block and the ABS control module. Repair if necessary.
|
|
Check the ground circuit
| 1. |
Disconnect the connector from the ABS control module.
|
| 2. |

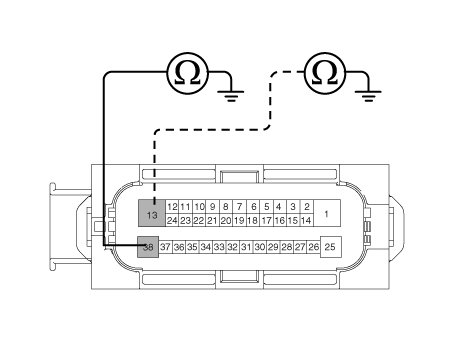

Check for continuity between terminals 13, 38 of the ABS control module
harness side connector and ground point.
|
| 3. |
Is there continuity?
|
|
▶ Check the wheel speed
sensor circuit.
|
|
|
▶ Repair an open in the
wire and ground point.
|
|
Check the wheel speed sensor circuit
| 1. |
Refer to the DTC troubleshooting procedures.
|
| 2. |
Is it normal?
|
|
▶ Check the hydraulic
circuit for leakage.
|
|
|
▶ Repair or replace the
wheel speed sensor.
|
|
Check the hydraulic circuit for leakage
| 1. |
Refer to the hydraulic lines.
|
| 2. |
Inspect leakage of the hydraulic lines.
|
| 3. |
Is it normal?
|
|
▶ The problem is still
occurring, replace the ABS control module.
|
|
|
▶ Repair the hydraulic
lines for leakage.
|
|
ABS Does Not Opterate (Intermittently).
|
Detecting condition
Trouble Symptoms
|
Possible Cause
|
Brake operation varies depending on driving conditions and road surface
conditions, so diagnosis can be difficult. However if a normal DTC is displayed,
check the following probable cause. When the problem is still occurring,
replace the ABS control module.
|
| – |
Faulty power source circuit
|
| – |
Faulty wheel speed sensor circuit
|
| – |
Faulty hydraulic circuit for leakage
|
|
Inspection procedures
DTC Inspection
| 1. |
Connect the GDS with the data link connector and turn the ignition switch
ON.
|
| 2. |
Verify that the DTC code is output.
|
| 3. |
Is the DTC code output?
|
|
▶ Check the wheel speed
sensor circuit.
|
|
|
▶ Erase the DTC and recheck
using GDS.
|
|
Check the wheel speed sensor circuit
| 1. |
Refer to the DTC troubleshooting procedures.
|
| 2. |
Is it normal?
|
|
▶ Check the stop lamp
switch circuit.
|
|
|
▶ Repair or replace the
wheel speed sensor.
|
|
Check the stop lamp switch circuit
| 1. |
Check that stop lamp lights up when brake pedal is depressed and turns
off when brake pedal is released.
|
| 2. |

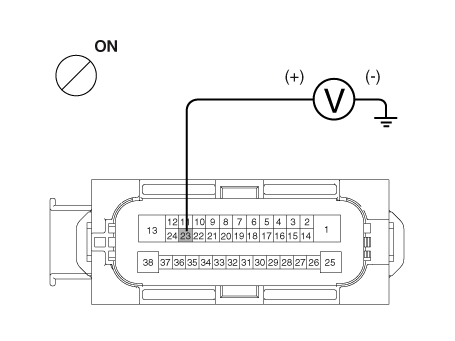

Measure the voltage between terminal 23 of the ABS control module harness
side connector and body ground when brake pedal is depressed.
|
Specification : approximately B+
|
|
| 3. |
Is the voltage within specification?
|
|
▶ Check the hydraulic
circuit for leakage.
|
|
|
▶ Repair the stop lamp
switch. Repair an open in the wire between the ABS control module
and the stop lamp switch.
|
|
Check the hydraulic circuit for leakage
| 1. |
Refer to the hydraulic lines.
|
| 2. |
Inspection leakage of the hydraulic lines.
|
| 3. |
Is it normal?
|
|
▶ The problem is still
occurring, replace the ABS control module.
|
|
|
▶ Repair the hydraulic
lines for leakage.
|
|
Communication with GDS is not possible.
(Communication with any system in not possible.)
|
Detecting condition
Trouble Symptoms
|
Possible Cause
|
Possible defect in the power supply system (including ground) for the diagnosis
line.
|
| – |
Faulty power source circuit
|
|
Inspection procedures
Check The Power Supply Circuit For The Diagnosis
| 1. |

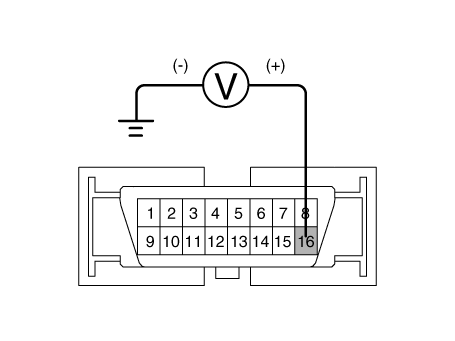

Measure the voltage between terminal 16 of the data link connector and
body ground.
|
Specification : approximately B+
|
|
| 2. |
Is voltage within specification?
|
|
▶ Check the ground circuit
for the diagnosis.
|
|
|
▶ Repair an open in the
wire. Check and replace fuse from the engine compartment junction
block.
|
|
Check the ground circuit for the diagnosis
| 1. |

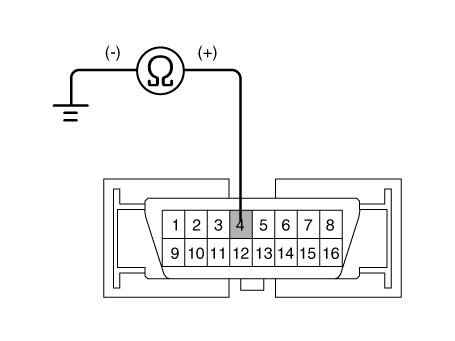

Check for continuity between terminal 4 of the data link connector and
body ground.
|
| 2. |
Is there continuity?
|
|
▶ Repair an open in the
wire between terminal 4 of the data link connector and ground point.
|
|
Communication with GDS is not possible.
(Communication with ABS only is not possible.)
|
Detecting condition
Trouble Symptoms
|
Possible Cause
|
When communication with GDS is not possible, the cause may be probably an
open in the HECU power circuit or an open in the diagnosis output circuit.
|
| – |
Faulty power source circuit
|
|
Inspection procedures
Check for Continuity in the CAN Line
| 1. |
Disconnect the connector from the ABS control module.
|
| 2. |
Check for continuity between terminals 26, 14 of the ABS control module
connector and 6, 14 of the data link connector.
|
| 3. |
Is there continuity?
|
|
▶ Check the power source
of ABS control module.
|
|
|
▶ Repair an open in the
wire.
|
|
Check the power source of ABS control module
| 1. |
Disconnect the connector from the ABS control module.
|
| 2. |
Turn the ignition switch ON, measure the voltage between terminal 29
of the ABS control module harness side connector and body ground.
|
Specification : approximately B+
|
|
| 3. |
Is voltage within specification?
|
|
▶ Check for poor ground.
|
|
|
▶ Check the harness or
connector between the fuse (10A) in the engine compartment junction
block and the ABS control module.Repair if necessary.
|
|
Check for poor ground
| 1. |
Check for continuity between terminal 4 of the data link connector and
ground point.
|
|
▶ Replace the ABS control
module and recheck.
|
|
|
▶ Repair an open in the
wire or poor ground
|
|
When Ignition Key Is Turned ON (engine OFF), The ABS Warning Lamp Does Not
Light Up.
|
Detecting condition
Trouble Symptoms
|
Possible Cause
|
When current flows in the HECU the ABS warning lamp turns from ON to OFF
as the initial check. Therefore if the lamp does not light up, the cause
may be an open in the lamp power supply circuit, a blown bulb, an open in
the both circuits between the ABS warning lamp and the HECU, and the faulty
HECU.
|
| – |
Faulty ABS warning lamp bulb
|
| – |
Blown fuse is related to ABS in the engine compartment junction
block
|
| – |
Faulty ABS warning lamp module
|
|
Inspection procedures
Problem verification
| 1. |
Disconnect the connector from the ABS control module and turn the ignition
switch ON.
|
| 2. |
Does the ABS warning lamp light up?
|
|
▶ Inspectagain after
replacing the ABS HECU.
|
|
|
▶ Check the power source
for the ABS warning lamp.
|
|
Check the power source for the ABS warning lamp
| 1. |
Disconnect the instrument cluster connector (M01-A) and turn the ignition
switch ON.
|
| 2. |
Measure the voltage between terminal (M01-A) 29 of the cluster harness
side connector and body ground.
|
Specification : approximately B+
|
|
| 3. |
Is voltage within specification?
|
|
▶ Check the CAN circuit
resistance for ABS warning lamp.
|
|
|
▶ Check for blown fuse.
|
|
Check the CAN circuit resistance for ABS warning lamp
| 1. |
Disconnect the instrument cluster connector (M01-B) and turn the ignition
switch OFF.
|
| 2. |

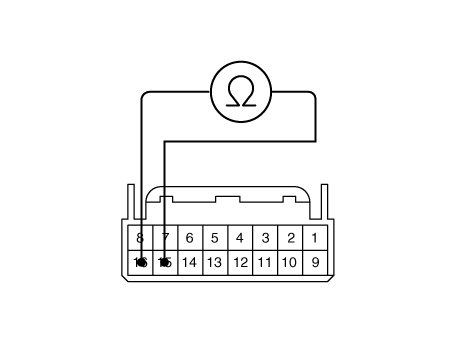

Measure the resistance between terminal (M01-B) 15 and 16 of the cluster
harness side connector.
|
| 3. |
Is resistance within specification?
|
|
▶ Repair ABS warning
lamp bulb or instrument cluster assembly.
|
|
|
▶ Check the CAN
circuit wiring for ABS warning lamp.
|
|
Check the CAN circuit wiring for ABS warning lamp
| 1. |
Disconnect the instrument cluster connector (M01-B) and ABS HECU connector,
and then turn the ignition switch OFF.
|
| 2. |
Check for continuity between terminal (M01-B) 15 of the cluster harness
side connector and terminal 26 of ABS HECU harness side.
Check for continuity between terminal (M01-B) 16 of the cluster harness
side connector and terminal 14 of ABS HECU harness side.
|
| 3. |
Is resistance within specification?
|
|
▶ Repair short
of wiring between terminal 26, 14 of ABS HECU harness connector
and ABS warning lamp module.
|
|
|
▶ Repair open of
wiring between terminal 26, 14 of ABS HECU harness connector and
ABS warning lamp module.
|
|
Even After The Engine Is Started, The ABS Warning Lamp Remains ON.
|
Detecting condition
Trouble Symptoms
|
Possible Cause
|
If the HECU detects trouble, it lights the ABS warning lamp while at the
same time prohibiting ABS control. At this time, the HECU records a DTC
in memory. Even though the normal code is output, the ABS warning lamp remains
ON, then the cause may be probably an open or short in the ABS warning lamp
circuit.
|
| – |
Faulty instrument cluster assembly
|
| – |
Faulty ABS warning lamp module
|
|
Inspection procedures
Check DTC Output
| 1. |
Connect the GDS to the 16P data link connector located behind the driver's
side kick panel.
|
| 2. |
Check the DTC output using GDS.
|
| 3. |
Is DTC output?
|
|
▶ Perform the DTC troubleshooting
procedure (Refer to DTC troubleshooting).
|
|
|
▶ Check the CAN circuit
resistance for ABS warning lamp.
|
|
Check the CAN circuit resistance for ABS warning lamp
| 1. |
Disconnect the instrument cluster connector (M01-B) and turn the ignition
switch OFF.
|
| 2. |
Measure the resistance between terminal (M01-B) 15 and 16 of the cluster
harness side connector.
|
| 3. |
Is resistance within specification?
|
|
▶ Repair ABS warning
lamp bulb or instrument cluster assembly.
|
|
|
▶ Check the CAN circuit
wiring for ABS warning lamp.
|
|
Check the CAN circuit wiring for ABS warning lamp
| 1. |
Disconnect the instrument cluster connector (M01-B) and ABS HECU connector,
and then turn the ignition switch OFF.
|
| 2. |
Check for continuity between terminal (M01-B) 15 of the cluster harness
side connector and terminal 26 of ABS HECU harness side.
Check for continuity between terminal (M01-B) 16 of the cluster harness
side connector and terminal 14 of ABS HECU harness side.
|
| 3. |
Is resistance within specification?
|
|
▶ Repair short of wiring
between terminal 26, 14 of ABS HECU harness connector and ABS warning
lamp module.
|
|
|
▶ Repair open of wiring
between terminal 26, 14 of ABS HECU harness connector and ABS warning
lamp module.
|
|
Bleeding of Brake System
This procedure should be followed to ensure adequate bleeding of air and filling
of the ABS unit, brake lines and master cylinder with brake fluid.
| 1. |
Remove the reservoir cap and fill the brake reservoir with brake fluid.
| •
|
If there is any brake fluid on any painted surface,
wash it off immediately.
|
|
| •
|
When pressure bleeding, do not depress the brake pedal.
|
| •
|
Recommended fluid........ DOT3 or DOT4
|
|
|
| 2. |
Connect a clear plastic tube to the wheel cylinder bleeder plug and
insert the other end of the tube into a half filled clear plastic bottle.
|
| 3. |
Connect the GDS to the data link connector located underneath the dash
panel.
|
| 4. |
Select and operate according to the instructions on the GDS screen.
|
You must obey the maximum operating time of the ABS motor with
the GDS to prevent the motor pump from burning.
|
| (2) |
Select Anti-Lock Brake system.
|
| (3) |

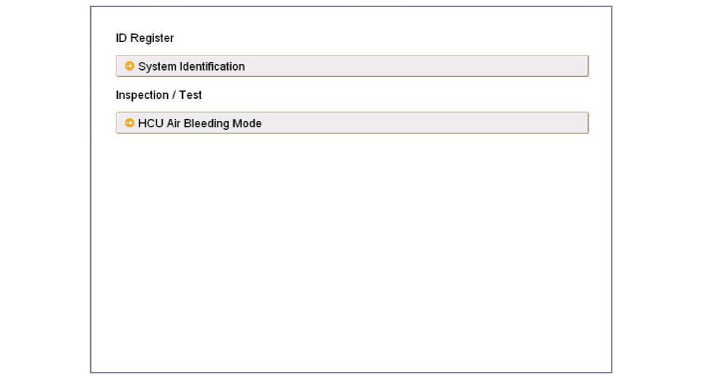

Select HCU air bleeding mode.
|
| (4) |

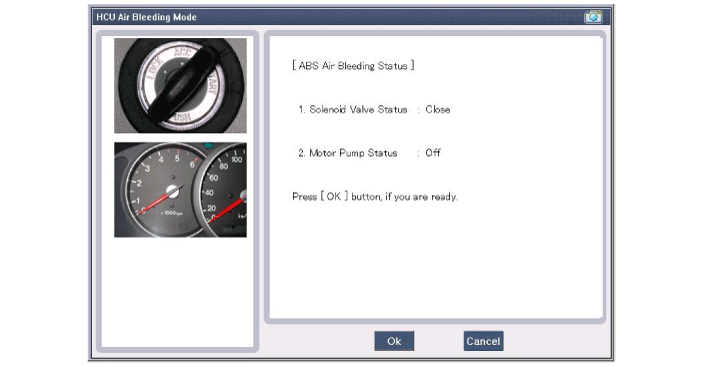

Press "OK" to operate motor pump and solenoid valve.
|
| (5) |

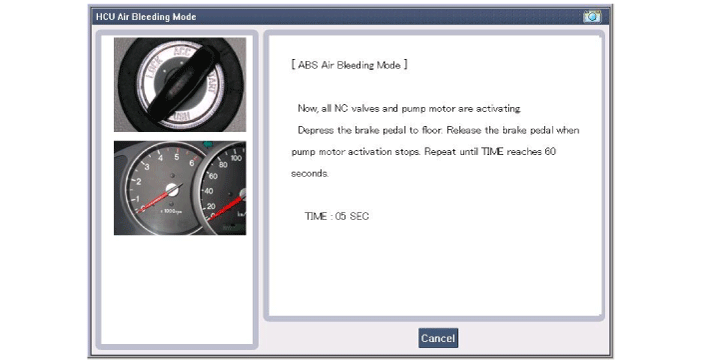

Wait 60 sec. before operating the air bleeding.
(If not, you may damage the motor.)
|
| (6) |

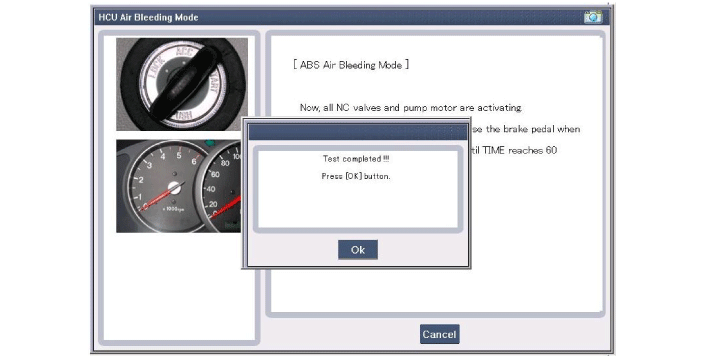

Perform the air bleeding.
|
|
| 5. |
Pump the brake pedal several times, and then loosen the bleeder screw
until fluid starts to run out without bubbles. Then close the bleeder
screw (A).

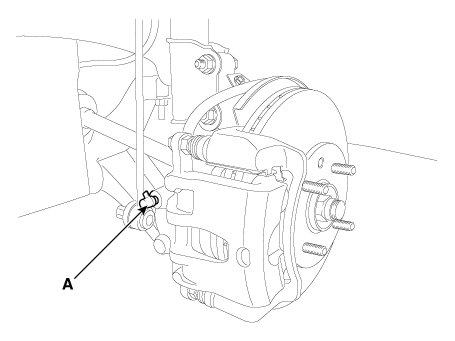

[Front]

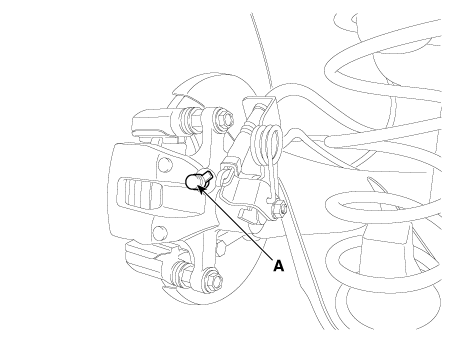

[Rear]
|
| 6. |

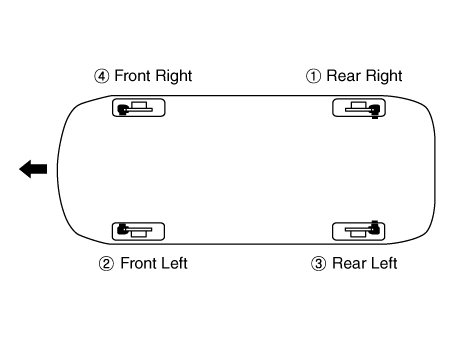

Repeat step 5 until there are no more bubbles in the fluid for each
wheel.
|
| 7. |
Tighten the bleeder screw.
|
Bleed screw tightening torque :
7 - 13 N.m (0.7 - 1.3 kgf.m, 5.4 - 9.5 lb-ft)
|
|
Terminal Function
Pin No
Description
Current (AMPS)
Resistance (mΩ)
Remark
1
POS...
Description
The EBD System (Electronic Brake force Distribution) as a sub-system of the
ABS system is to control the effective adhesion utilization by the rear wheels...
Other information:
The hazard warning flasher serves as a warning to other drivers to exercise extreme
caution when approaching, overtaking, or passing your vehicle.
It should be used whenever emergency repairs are being made or when the vehicle
is stopped near the edge of a roadway...
Replacement
•
Put on gloves to prevent hand injuries.
•
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components...
Schematic diagrams
EBD(Electronic Brake-force Distribution). Description and operation
