Hyundai Venue: Blind-Spot Collision Warning (BCW) / Warning and System Control
Blind-Spot Collision Warning system

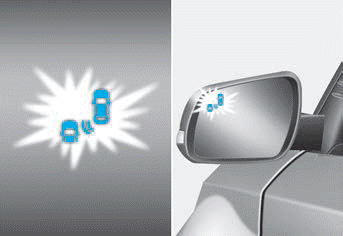

Left side

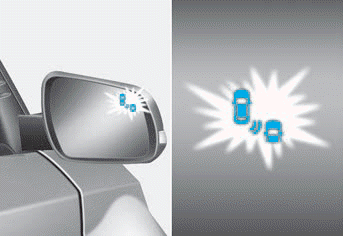

Right side
First stage alert
If a vehicle is detected within the boundary of the system, a yellow warning light will illuminate on the outer side view mirror.
If the detected vehicle is no longer within the blind spot area, the warning will turn off according to the driving conditions of the vehicle.

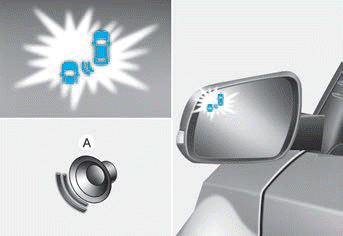

Left side

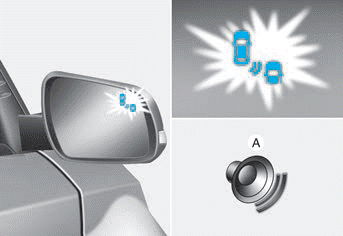

Right side
[A] : Warning sound
Second stage alert
A warning chime to alert the driver will activate when:
1. A vehicle has been detected in the blind spot area by the radar system AND.
2. The turn signal is applied (same side as where the vehicle is being detected).
When this alert is activated, the warning light on the outer side view mirror. Will also blink. And a warning chime will sound.
If you turn off the turn signal indicator, the second stage alert will be deactivated.
If the detected vehicle is no longer within the blind spot area, the warning will turn off according to the driving conditions of the vehicle.
WARNING
- The warning light on the outer side view mirror will illuminate whenever a vehicle is detected at the rear side by the system. To avoid accidents, do not focus only on the warning light and neglect to see the surroundings of the vehicle.
- Drive safely even though the vehicle is equipped with Blind-Spot Collision Warning system. Do not solely rely on the system but check your surroundings before changing lanes or backing the vehicle up.
- The system may not alert the driver in some situations due to system limitations so always check your surroundings while driving.
CAUTION
- Always pay attention to road and traffic conditions while driving, whether or not the warning light on the outside rearview mirror illuminates or there is a warning alarm.
- Playing the vehicle audio system at high volume may prevent occupants from hearing Blind-Spot Collision Warning system warning sounds.
- If any other warning sound such as seat belt warning chime is already generated, Blind-Spot Collision Warning system warning may not sound.
System Setting
• Setting Blind-Spot Safety function The driver can activate the system by placing
the ignition switch to the ON position and by selecting 'User Settings → Driver
Assistance → Blind- Spot Safety'...
Detecting Sensor
The rear corner radars are located inside the rear bumper for detecting the side
and rear areas. Always keep the rear bumper clean for proper operation of the system...
