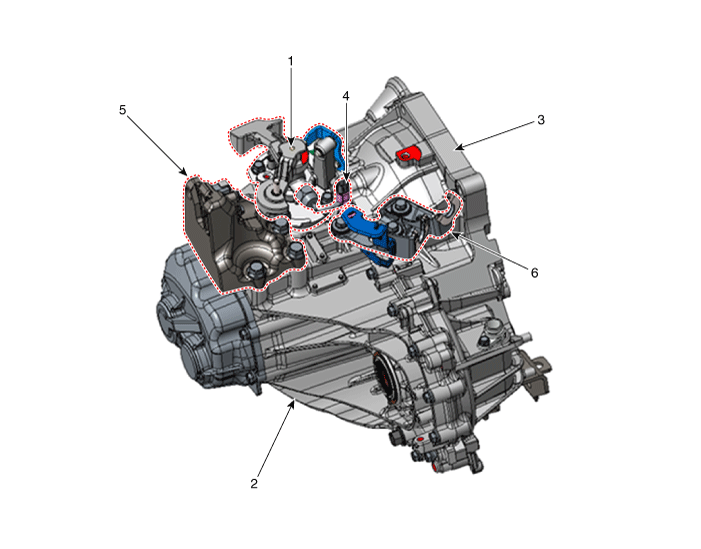

Components

Hyundai Venue. Components and components location

1. Control shaft complete
2. Manual transaxle case
3. Clutch housing
 4. Back-up lamp switch
5. Manual transaxle support bracket
6. Control cable bracket
