Components

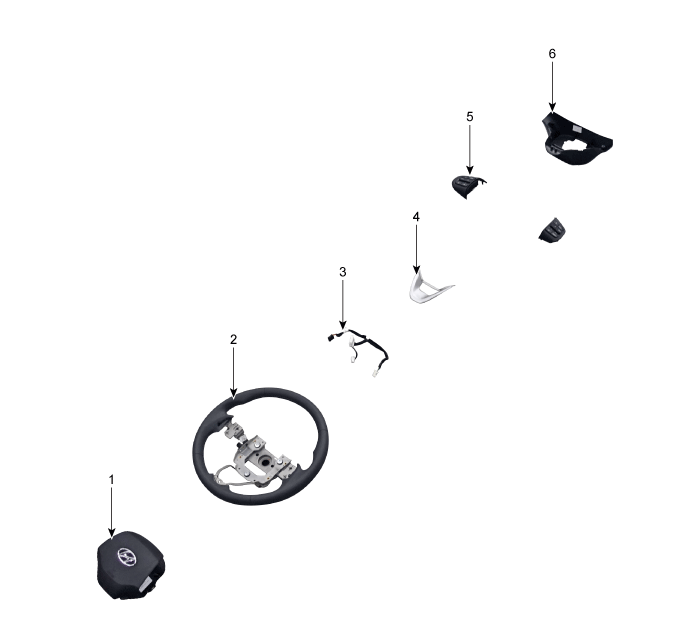

Hyundai Venue. Components and components location

1. Drive air bag module (DAB)
2. Steering wheel
3. Wiring
 4. Bezel
5. Remote control switch
6. Lower cover

    Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Turn the steering wheel so that the front wheels can face straight ahead.
