Hyundai Venue: Button Engine Start System / ESCL(Electronic Steering Column Lock). Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Body Electrical System / Button Engine Start System / ESCL(Electronic Steering Column Lock). Repair procedures

Removal
1.
Disconnect the negative(-) battery terminal.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
3.
Remove the steering column upper and lower shrouds.
(Refer to Body - "Steering Column Shroud Panel")
4.

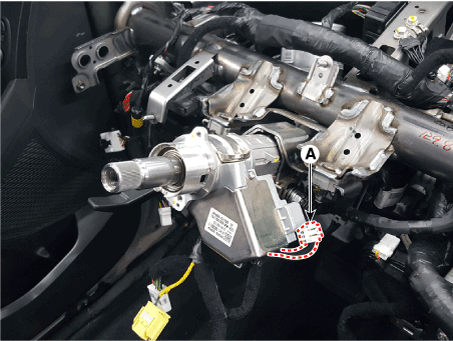

Disconnect the electronic steering column lock connector (A).

Hyundai Venue. ESCL(Electronic Steering Column Lock). Repair procedures

5.
Remove the electronic steering column lock (A) after loosening the mounting bolts.

Hyundai Venue. ESCL(Electronic Steering Column Lock). Repair procedures

Installation
1.

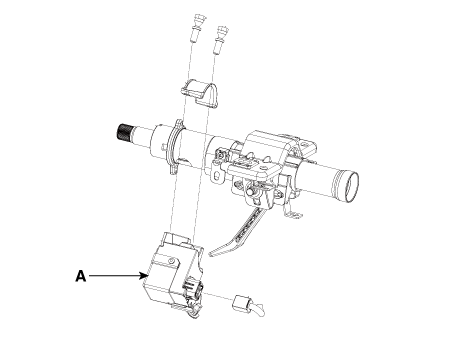

Install the electronic steering column lock (A).
Hyundai Venue. ESCL(Electronic Steering Column Lock). Repair procedures
Do not reuse the shear bolts.
When installing the new shear bolts to the electronic steering column lock, tighten the shear bolts until its head is cut off.
Tightening torque :
7.0 - 13.0 N.m (0.7 - 1.3 kgf.m, 5.0 - 9.4 lb.ft)

Hyundai Venue. ESCL(Electronic Steering Column Lock). Repair procedures

2.
Install the steering column.
3.
Install the crash pad lower panel.
