Hyundai Venue: Manual Temperature Control Mode / Fan speed control, Air conditioning, OFF mode
Fan speed control (1)
The fan speed can be set as desired by pushing the fan speed control button.
More air is delivered with higher fan speeds.
Pressing the OFF button turns off the fan.
Information
For better sound quality, fan speed may automatically slow down for a couple of minutes when you activate voice recognition or hands free.
NOTICE
Operating the fan when the ignition switch is in the ON position could cause the battery to discharge. Operate the fan when the engine is running.
Air conditioning (9)
Push the A/C button to manually turn the system on (indicator light will illuminate) and off.

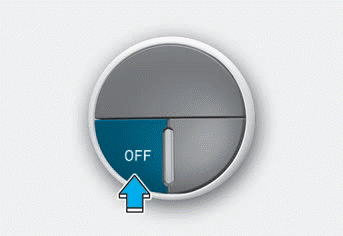

OFF mode (4)
Push the OFF button to turn the climate control system off. You can still operate the mode and air intake buttons as long as the ignition switch is in the ON position.
Temperature & Air intake control
Temperature control (2)
Turn the knob to the right to increase the temperature. Turn the knob to the
left to decrease temperature.
The temperature will increase or decrease by 1°F/0...
System Operation
Cooling / Ventilation
1. Select the Face Level mode.
2. Set the air intake control to fresh mode.
3. Set the temperature control to the desired position...
