Hyundai Venue. Hood Assembly. Repair procedures
Be careful not to damage the hood and body.
Hyundai Venue. Hood Assembly. Repair procedures
Removing or installing the hood requires an assistant.
When removing the clips, use a clip remover.

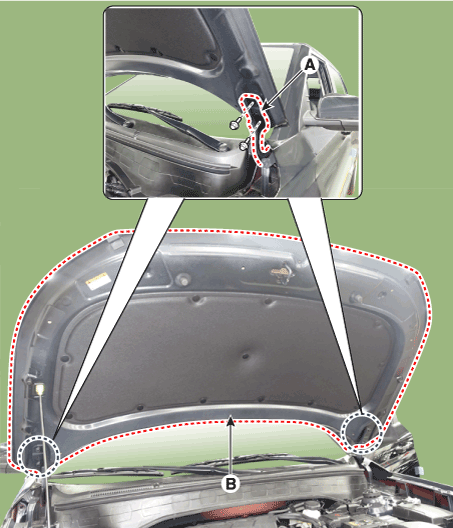

Loosen the hood hinge mounting bolts (A) and remove the hood assembly (B).
Tightening torque :
21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)

Hyundai Venue. Hood Assembly. Repair procedures

To install, reverse removal procedure.
Hyundai Venue. Hood Assembly. Repair procedures
Make sure the hood locks / unlocks and opens / closes properly.
Adjust the hood alignment.
