Odometer

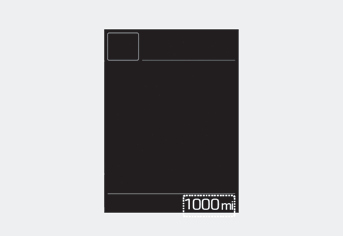

Hyundai Venue. Odometer & Range

The odometer indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.

Range

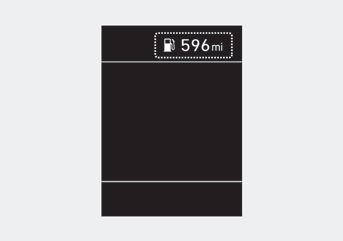

Hyundai Venue. Odometer & Range

  • The range is the estimated distance the vehicle can be driven with the remaining fuel.
  • If the estimated distance is below 1 mi. (1 km), the trip computer will display "----" as range.

Information

  • If the vehicle is not on level ground or the battery power has been interrupted, the range function may not operate correctly.
  • The range may differ from the actual driving distance as it is only an estimate of the available driving range for the vehicle and driving conditions.
  • The trip computer may not register additional fuel if less than 1.6 gallon (6 liters) of fuel are added to the vehicle.
  • The range may vary significantly based on driving conditions, driving habits, and condition of the vehicle.
