Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear bumper.
(Refer to Body - "Rear Bumper Cover")
3.

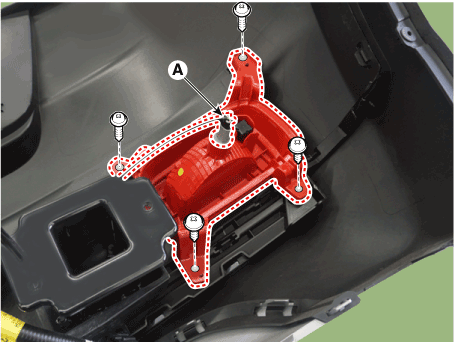

Remove the rear fog lamp assembly (A) after loosening the mounting screws.

Hyundai Venue. Repair procedures

4.

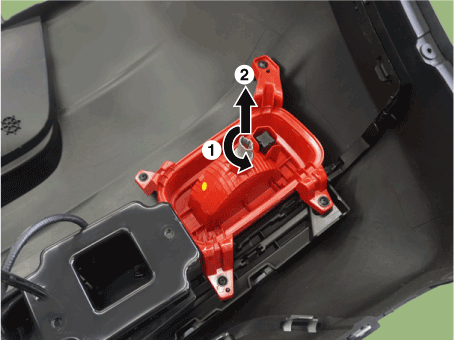

Replace the turnsignal lamp bulb after turning the bulb socket counterclockwise.

Hyundai Venue. Repair procedures

INSTALLATION
1.
Install the rear fog lamp.
2.
Connect the negative (-) battery terminal.
