| Removal |
| 1. |
Turn ignition switch OFF and disconnect the negative (-) battery cable.
|
| 2. |
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad")
|
| 3. |

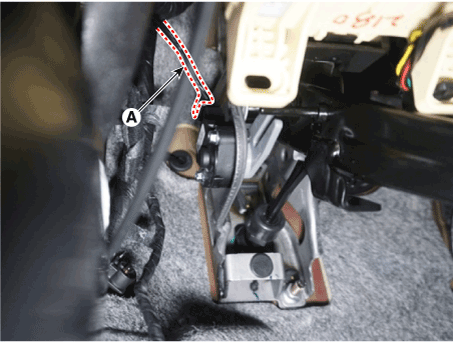

Disconnect the ignition lock & clutch switch connector (A).
|
| 4. |

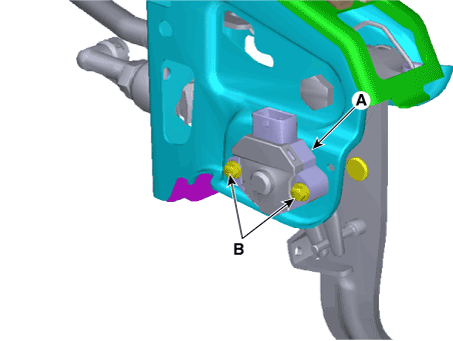

Remove the ignition lock & clutch switch (A) after loosening the bolts
(B).
|
| Inspection |
| Component Inspection |
| 1. |
Turn ignition switch OFF and disconnect the negative (-) battery cable.
|
| 2. |
Remove the ignition lock & clutch switch.
|
| 3. |

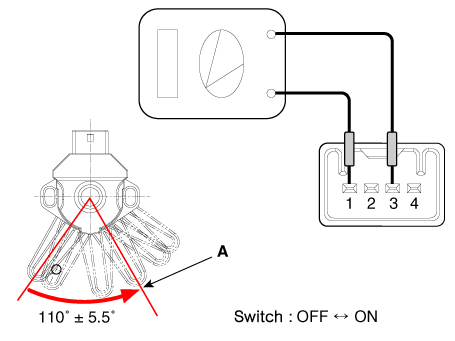

Rotate the switch lever to the direction of the arrow to check the operating
point (A).
|
| Installation |
| 1. |
Install is proceeds as follows.

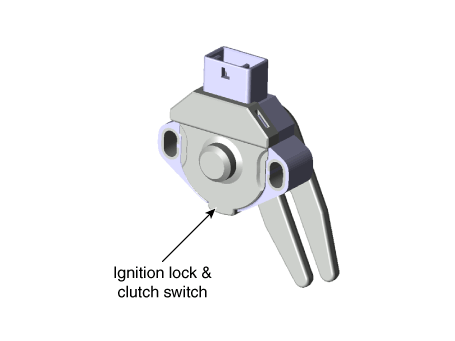

※ How to install the ignition lock & clutch switch
(A) After inserting the switch lever (A) into the clutch pedal pin (B),
pre-tighten the switch mounting bolts (C).

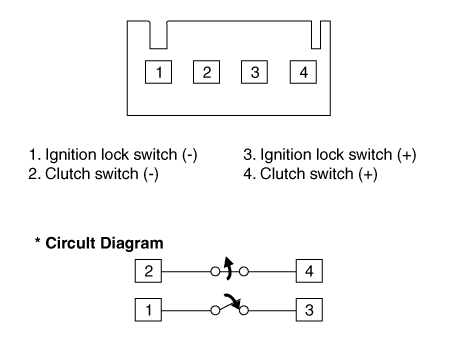

(B) Set the clutch switches so as to confirm that the electric current
is applied to the pins â‘ and â‘¢.
(C) Fix the clutch pedal to the ignition lock switch OFF→ON strokes
(F).
(D) With the pedal fixed, rotate the switch clockwise and counter-clockwise
to set it to a position at the transition from OFF to ON. Then, tighten
the mounting bolts (C) to the specified torque.
(E) Once completing the assembly, check again that the switch is correctly
operating.
※ OFF→ON stroke tolerance should be within ± 7.7 mm (0.3031 in.)
|
