Components Location

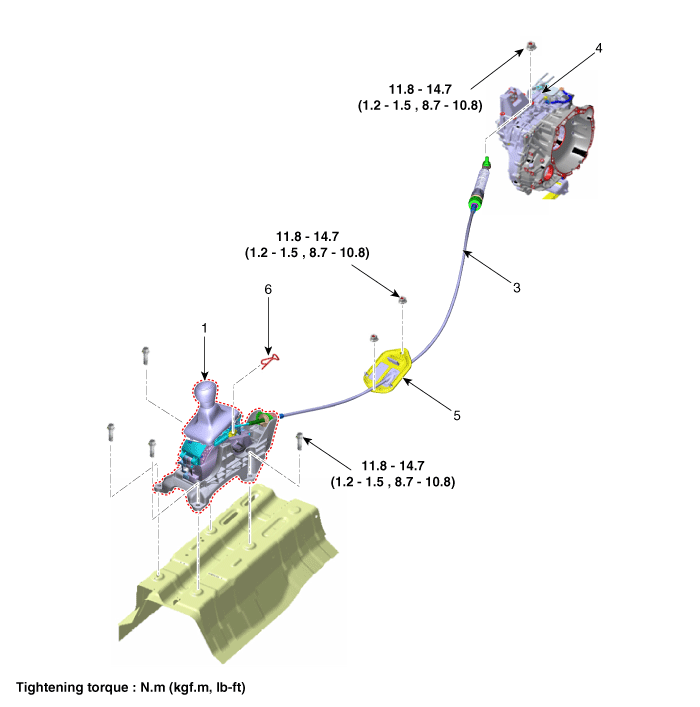

Hyundai Venue. Shift Lever. Components and components location

1. Shift lever knob & boots
2. Shift lever assembly
3. Shift cable
4. Manual control lever
5. Shift cable retainer
6. Snap pin
