Components

Hyundai Venue. SRS Control Module (SRSCM). Components and components location

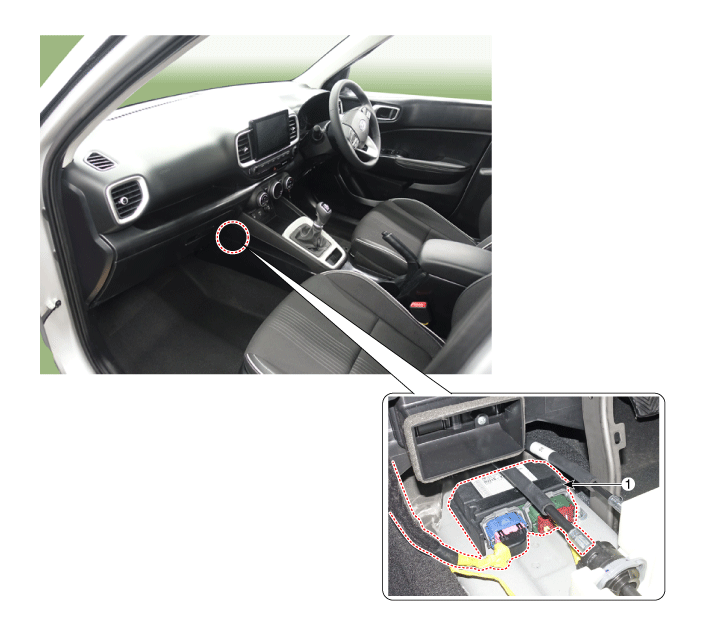

1. Supplemental Restraint System Control Module (SRSCM)

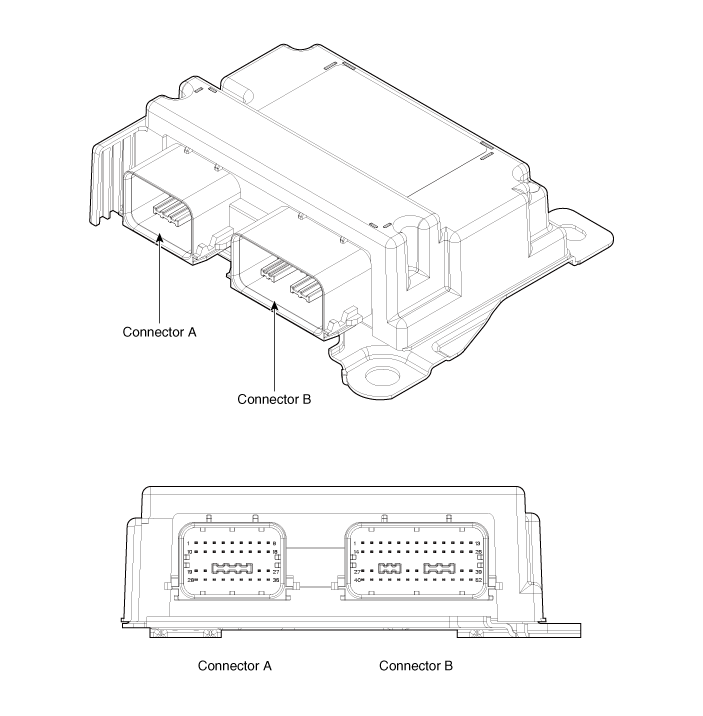

Supplemental Restraint System Control Module (SRSCM)

Hyundai Venue. SRS Control Module (SRSCM). Components and components location

No
Connector A
Connector B
1
Driver airbag 2st stage High (+)
-
2
Driver airbag 2st stage Low (+)
-
3
Passenger airbag 2st stage Low (+)
-
4
Passenger airbag 2st stage High (+)
-
5
-
-
6
-
-
7
-
-
8
-
Retractor pretensioner-Rear, passenger HIGH (+)
9
-
Retractor pretensioner-Rear, passenger LOW (-)
10
Battery (+)
-
11
Crash Output
-
12
Passenger Airbag 1st Stage LOW (-)
-
13
Passenger Airbag 1st Stage HIGH (+)
-
14
-
-
15
-
-
16
Passenger airbag OFF lamp/Telltale lamp
-
17
Passenger airbag ON lamp
Curtain Airbag Passenger LOW (-)
18

Curtain Airbag Passenger HIGH (+)
19
Driver Airbag 1st HIGH (+)
Curtain Airbag Driver HIGH (+)
20
Driver Airbag 1st LOW (-)
Curtain Airbag Driver LOW (-)
21
-
Side Airbag Front Passenger LOW (-)
22
-
Side Airbag Front Passenger HIGH (+)
23
-
Side Airbag Front Driver HIGH (+)
24
-
Side Airbag Front Driver LOW (-)
25
-
Adaptive load limiter, passenger LOW (-)
26
C-CAN LOW (-)
Adaptive load limiter, passenger HIGH (+)
27
C-CAN HIGH (+)
Retractor Pretensioner Front Driver LOW (-)
28
IGN 1
Retractor Pretensioner Front Driver HIGH (+)
29
Front Impact Sensor Driver_ HIGH (+)
-
30
Front Impact Sensor_Driver LOW (-)
-
31
Front Impact Sensor_Passenger LOW (-)
-
32
Front Impact Sensor_Passenger HIGH (+)
Retractor Pretensioner Front Passenger HIGH (+)
33
Passenger airbag On/Off switch HIGH (+)
Retractor Pretensioner Front Passenger LOW (-)
34
Passenger airbag On/Off switch LOW (-)
-
35
L-CAN LOW (-)
-
36
L-CAN HIGH (+)
-
37

-
38
Adaptive load limiter, driver LOW (-)
39
Adaptive load limiter, driver HIGH (+)
40
Ground
41
-
42
-
43
-
44
-
45
-
46
-
47
Side Impact Sensor Front Driver HIGH (+)
48
Side Impact Sensor Front Driver LOW (-)
49
Side Impact Sensor Front Passenger LOW (-)
50
Side Impact Sensor Front Passenger HIGH (+)
51
-
52
-

    SRS Control Module (SRSCM). Description and operation

    Description • Supplemental Restraint System Control Module (SRSCM) determines whether and when to deploy air bag module, seat belt pretensioner (BPT)...

    SRS Control Module (SRSCM). Repair procedures

    Removal 1. Remove the ignition key from the vehicle. 2. Disconnect the battery negative cable and wait for at least three minutes before beginning work...
