Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the driver crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
3.
Remove the steering column upper and lower shroud panel.
(Refer to Body - "Steering Column Shroud Panel")
4.

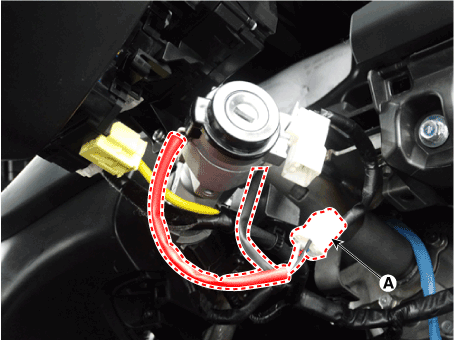

Disconnect the key warning/immobilizer connector (A).

Hyundai Venue. Antenna Coil. Repair procedures

5.
Insert key and turn it to ACC position.
6.

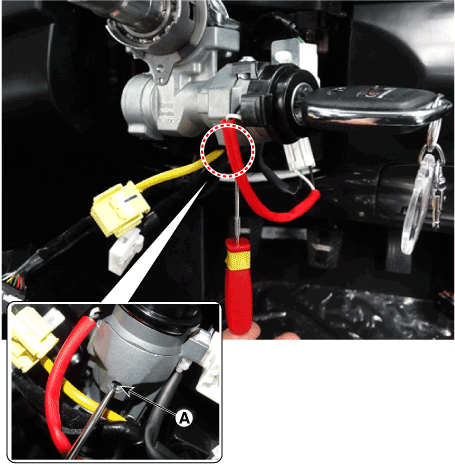

Pushing lock pin (A) with the awl.

Hyundai Venue. Antenna Coil. Repair procedures

7.

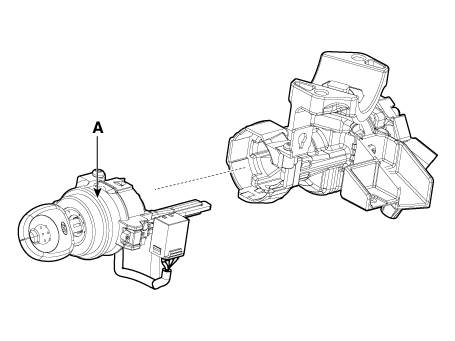

Remove the immobilizer coil antenna (A) after loosening the mounting screw.

Hyundai Venue. Antenna Coil. Repair procedures

Installation
1.
Install the coil antenna and connect the 6P connector.
2.
Install the crash pad lower panel.
3.
Connect the negative (-) battery terminal.
