Hyundai Venue: Ignition Lock Switch / Clutch Switch. Repair procedures

Hyundai Venue (QX) (2020-2022) Service Manual / Clutch System / Ignition Lock Switch / Clutch Switch. Repair procedures

Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad")
3.

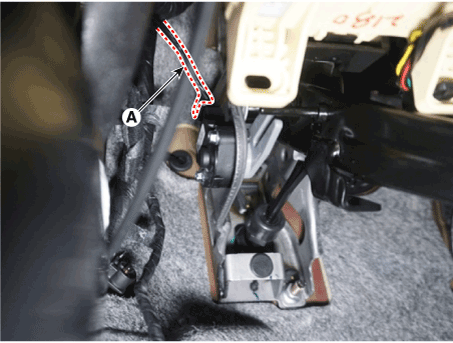

Disconnect the ignition lock & clutch switch connector (A).

Hyundai Venue. Clutch Switch. Repair procedures

4.

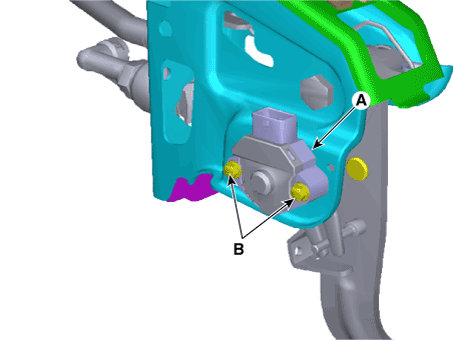

Remove the ignition lock & clutch switch (A) after loosening the bolts (B).

Hyundai Venue. Clutch Switch. Repair procedures

Hyundai Venue. Clutch Switch. Repair procedures

Inspection
Component Inspection
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.

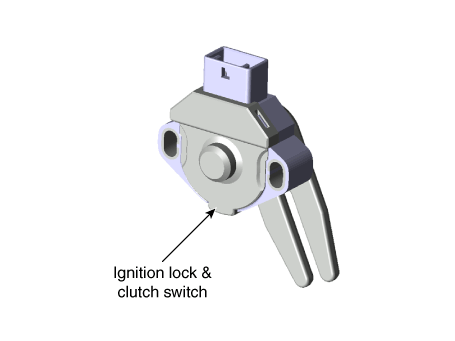

Remove the ignition lock & clutch switch.
3.

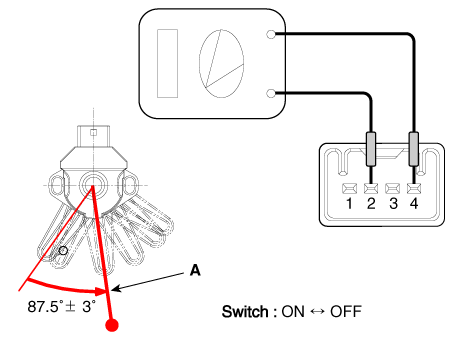

Rotate the switch lever to the direction of the arrow to check the operating point (A).

Hyundai Venue. Clutch Switch. Repair procedures

Hyundai Venue. Clutch Switch. Repair procedures

Installation
1.
Install is proceeds as follows.

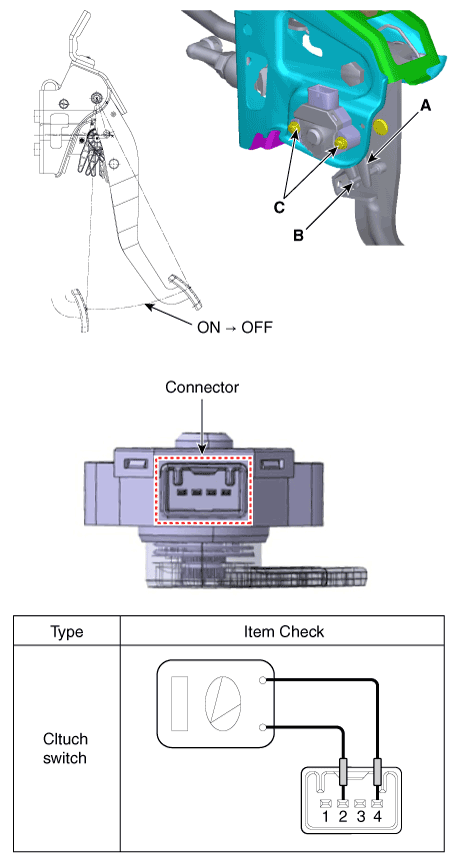

※ How to install the ignition lock & clutch switch
(A) After inserting the switch lever (A) into the clutch pedal pin (B), pre-tighten the switch mounting bolts (C).

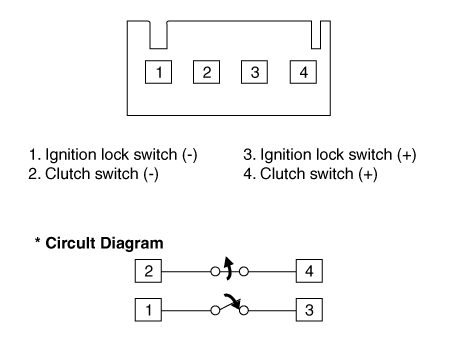

(B) Set the clutch switches so as to confirm that the electric current is applied to the pins ② and ④.
(C) Fix the clutch pedal to the ignition lock switch ON→OFF strokes (F).
(D) With the pedal fixed, rotate the switch clockwise and counter-clockwise to set it to a position at the transition from ON to OFF. Then, tighten the mounting bolts (C) to the specified torque.
(E) Once completing the assembly, check again that the switch is correctly operating.
※ ON→OFF stroke tolerance should be within ± 3 mm (0.1181 in.)
ON → OFF Position (F) :
70 ± 3 mm (2.7559 ± 0.1181 in.)
Tightening torque :
2.0 - 3.9 N.m (0.2 - 0.4 kgf.m, 1.4 - 2.9 lb-ft)

Hyundai Venue. Clutch Switch. Repair procedures
