Components

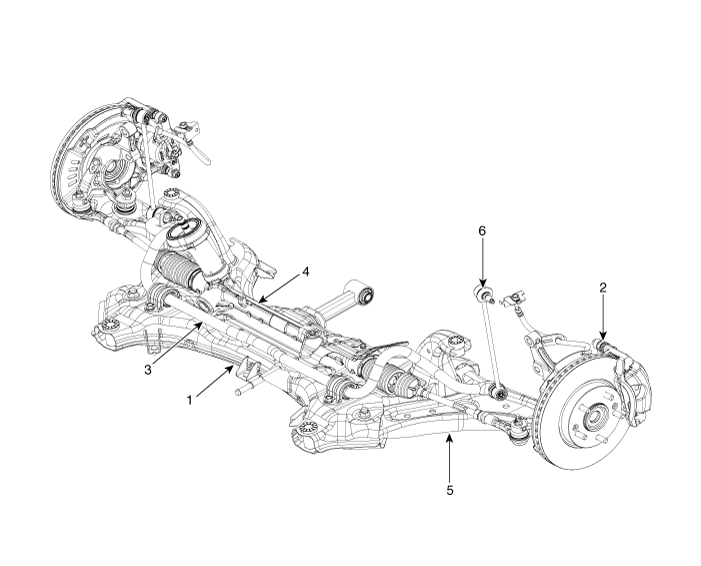

Hyundai Venue. Components and components location

1. Front sub frame
2. Front axle
3. Front stabilizer bar
4. Steering gearbox
5. Front lower arm
6. Front stabilizer bar link
