Hyundai Venue: Air Conditioning System / Condenser. Repair procedures

Hyundai Venue (QX) (2020-2023) Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Condenser. Repair procedures

Inspection
1.
Check the condenser fins for clogging and damage. If clogged, clean them with water, and blow them with compressed air. If bent, gently bend them using a screwdriver or pliers.
2.
Check the condenser connections for leakage, and repair or replace it, if required.
Replacement
1.
Recover the refrigerant with a recovery / recycling / charging station.
2.
Disconnect the negative (-) battery terminal.
3.
Remove the front bumper.
(Refer to Body (Interior and Exterior) - "Front Bumper Cover")
4.
Remove the front bumper beam assembly.
(Refer to Body (Interior and Exterior) - "Front Bumper Beam Assembly")
5.

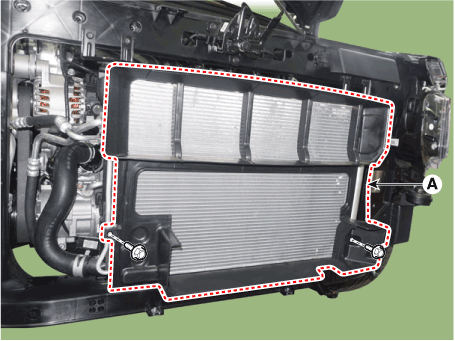

Loosen the mounting bolts and remove the air guard (A).

Hyundai Venue. Condenser. Repair procedures

6.

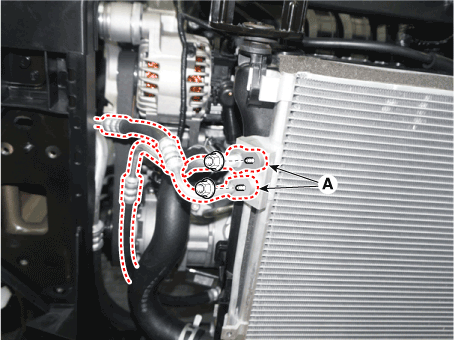

Loosen the mounting bolts and separate the suction & liquid line (A).

Hyundai Venue. Condenser. Repair procedures

7.

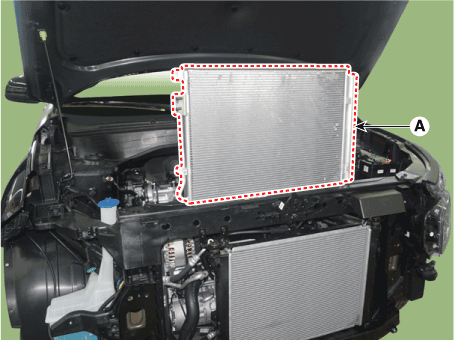

Remove the condenser (A).

Hyundai Venue. Condenser. Repair procedures

8.
To install, reverse the removal procedure.
Hyundai Venue. Condenser. Repair procedures
If you're installing a new condenser, add refrigerant oil.
Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R - 134a to avoid leakage.
Be careful not to damage the radiator and condenser fins when installing the condenser.
Charge the system, and test its performance.
