Hyundai Venue (QX): Manual Temperature Control Mode / Instrument panel vents

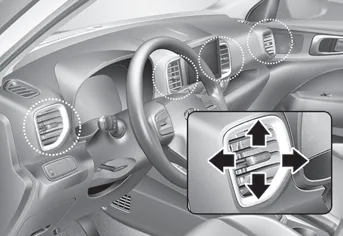

The instrument panel vent air flow can be directed up/down or left/right using the vent adjustment lever.
The air flow can also be CLOSED using the vent adjustment lever. The instrument panel air vents are the “clickto- close” type.
To CLOSE the instrument panel vents perform the following:
-- For the driver side vents, slide the vent adjustment lever to the left until
it clicks.
-- For the passenger side vents, slide the vent adjustment lever to the right until
it clicks.
The mode selection button controls the direction of the air flow through the ventilation system. The air flow outlet direction is cycled as follows: Face-Level (B, D) Air flow is directed toward the upper body and face.
Temperature control (2) Turn the knob to the right to increase the temperature. Turn the knob to the left to decrease temperature. The temperature will increase or decrease by 1°F/0.
