Hyundai Venue: Sun Roof / Sunroof Switch. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Body Electrical System / Sun Roof / Sunroof Switch. Repair procedures

Inspection
1.
Disconnect the negative (-) battery terminal.
2.

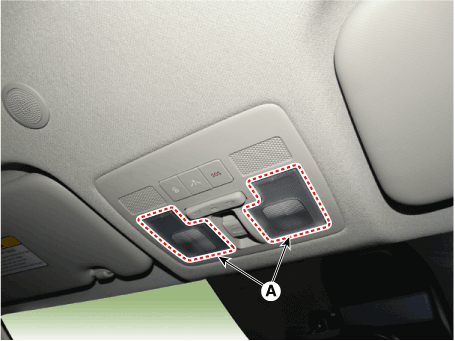

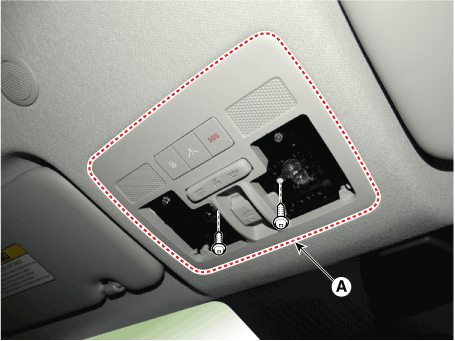

Disconnect the overhead console lamp lense (A).

Hyundai Venue. Sunroof Switch. Repair procedures

3.

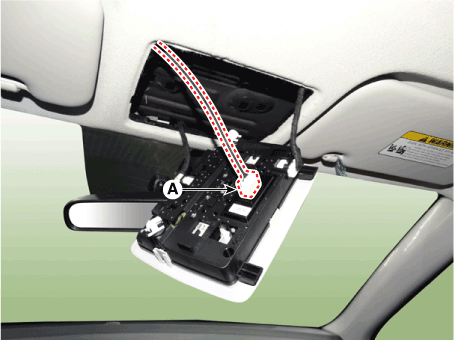

Remove the over head console lamp and disconnect the switch (A) and map lamp connectors.

Hyundai Venue. Sunroof Switch. Repair procedures

4.

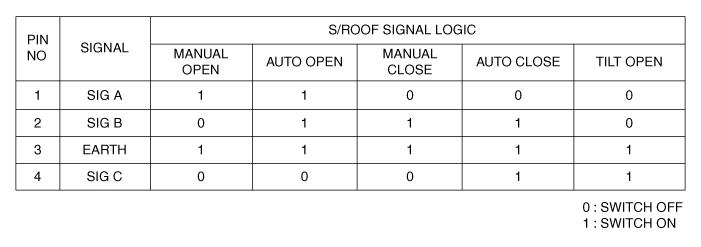

Check for continuity between the terminals.

Hyundai Venue. Sunroof Switch. Repair procedures

Hyundai Venue. Sunroof Switch. Repair procedures

    Schematic diagrams

    ..

    Sunroof Motor. Repair procedures

    Inspection 1. Disconnect the negative battery terminal. 2. Remove the roof trim assembly. (Refer to Body - "Roof Trim Assembly") 3...
