Replacement
Hyundai Venue. Sunroof Assembly. Repair procedures
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on glove to protect your hands.
1.
Remove the roof trim.
(Refer to Roof Trim - "Roof Trim Assembly")
2.

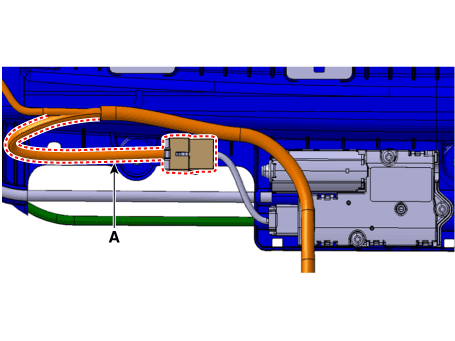

Press the lock pin and separate the roof wiring connector (A).

Hyundai Venue. Sunroof Assembly. Repair procedures

3.

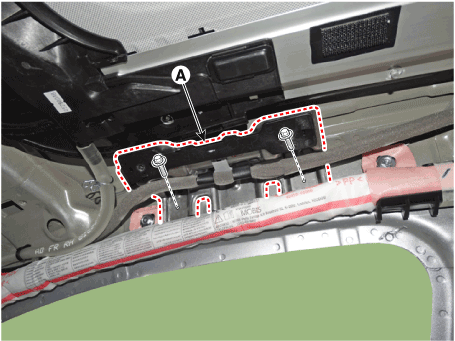

After loosening the mounting bolts, then remove the assist handle bracket (A).

Hyundai Venue. Sunroof Assembly. Repair procedures

4.

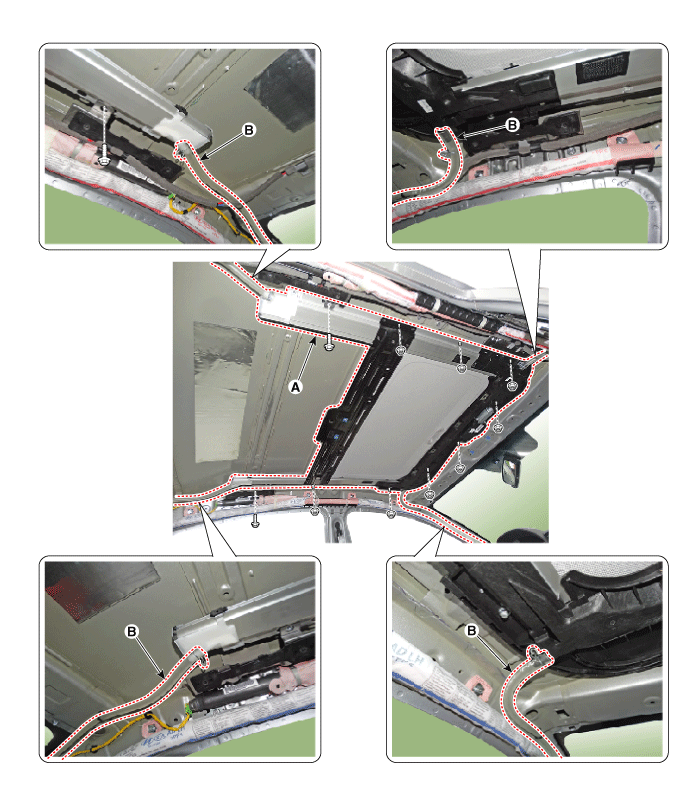

Disconnect the drain tubes (B).
5.
After loosening the mounding nuts and bolts, remove the sunroof assembly (A).
Tightening torque :
Bolt : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
Nut : 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Hyundai Venue. Sunroof Assembly. Repair procedures

6.
To install, reverse the removal procedure.
Hyundai Venue. Sunroof Assembly. Repair procedures
Make sure to initialize the motor.
